8. Develop an application that Navigate from one Screen to another (Seamless navigation).
Step to Run
- Open your Flutter project in VS Code.
- Open
lib/main.dart. - Delete the existing code.
- Paste the program code given below.
- Save the file.
- Run the program using
flutter runcmd
PROGRAM:
import 'package:flutter/material.dart';
void main() {
runApp(const NavigationApp());
}
class NavigationApp extends StatelessWidget {
const NavigationApp({super.key});
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Lab Program 8',
debugShowCheckedModeBanner: false,
home: const FirstScreen(),
);
}
}
class FirstScreen extends StatelessWidget {
const FirstScreen({super.key});
void goToSecondScreen(BuildContext context) {
Navigator.push(
context,
MaterialPageRoute(
builder: (context) => const SecondScreen(),
),
);
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('Program 8: First Screen'),
centerTitle: true,
backgroundColor: Colors.blue,
foregroundColor: Colors.white,
),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
const Icon(
Icons.home,
size: 90,
color: Colors.blue,
),
const SizedBox(height: 20),
const Text(
'First Screen',
style: TextStyle(
fontSize: 30,
fontWeight: FontWeight.bold,
color: Colors.blue,
),
),
const SizedBox(height: 30),
ElevatedButton(
onPressed: () {
goToSecondScreen(context);
},
style: ElevatedButton.styleFrom(
backgroundColor: Colors.blue,
foregroundColor: Colors.white,
padding: const EdgeInsets.symmetric(
horizontal: 30,
vertical: 14,
),
),
child: const Text(
'Go to Second Screen',
style: TextStyle(fontSize: 18),
),
),
],
),
),
);
}
}
class SecondScreen extends StatelessWidget {
const SecondScreen({super.key});
void goToThirdScreen(BuildContext context) {
Navigator.push(
context,
MaterialPageRoute(
builder: (context) => const ThirdScreen(),
),
);
}
void goBack(BuildContext context) {
Navigator.pop(context);
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('Second Screen'),
centerTitle: true,
backgroundColor: Colors.green,
foregroundColor: Colors.white,
),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
const Icon(
Icons.arrow_forward,
size: 90,
color: Colors.green,
),
const SizedBox(height: 20),
const Text(
'Second Screen',
style: TextStyle(
fontSize: 30,
fontWeight: FontWeight.bold,
color: Colors.green,
),
),
const SizedBox(height: 30),
ElevatedButton(
onPressed: () {
goToThirdScreen(context);
},
style: ElevatedButton.styleFrom(
backgroundColor: Colors.green,
foregroundColor: Colors.white,
padding: const EdgeInsets.symmetric(
horizontal: 30,
vertical: 14,
),
),
child: const Text(
'Go to Third Screen',
style: TextStyle(fontSize: 18),
),
),
const SizedBox(height: 15),
ElevatedButton(
onPressed: () {
goBack(context);
},
style: ElevatedButton.styleFrom(
backgroundColor: Colors.red,
foregroundColor: Colors.white,
padding: const EdgeInsets.symmetric(
horizontal: 30,
vertical: 14,
),
),
child: const Text(
'Back to First Screen',
style: TextStyle(fontSize: 18),
),
),
],
),
),
);
}
}
class ThirdScreen extends StatelessWidget {
const ThirdScreen({super.key});
void goBack(BuildContext context) {
Navigator.pop(context);
}
void goToFirstScreen(BuildContext context) {
Navigator.popUntil(context, (route) => route.isFirst);
}
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: const Text('Third Screen'),
centerTitle: true,
backgroundColor: Colors.purple,
foregroundColor: Colors.white,
),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: [
const Icon(
Icons.done_all,
size: 90,
color: Colors.purple,
),
const SizedBox(height: 20),
const Text(
'Third Screen',
style: TextStyle(
fontSize: 30,
fontWeight: FontWeight.bold,
color: Colors.purple,
),
),
const SizedBox(height: 30),
ElevatedButton(
onPressed: () {
goBack(context);
},
style: ElevatedButton.styleFrom(
backgroundColor: Colors.orange,
foregroundColor: Colors.white,
padding: const EdgeInsets.symmetric(
horizontal: 30,
vertical: 14,
),
),
child: const Text(
'Back to Second Screen',
style: TextStyle(fontSize: 18),
),
),
const SizedBox(height: 15),
ElevatedButton(
onPressed: () {
goToFirstScreen(context);
},
style: ElevatedButton.styleFrom(
backgroundColor: Colors.purple,
foregroundColor: Colors.white,
padding: const EdgeInsets.symmetric(
horizontal: 30,
vertical: 14,
),
),
child: const Text(
'Back to First Screen',
style: TextStyle(fontSize: 18),
),
),
],
),
),
);
}

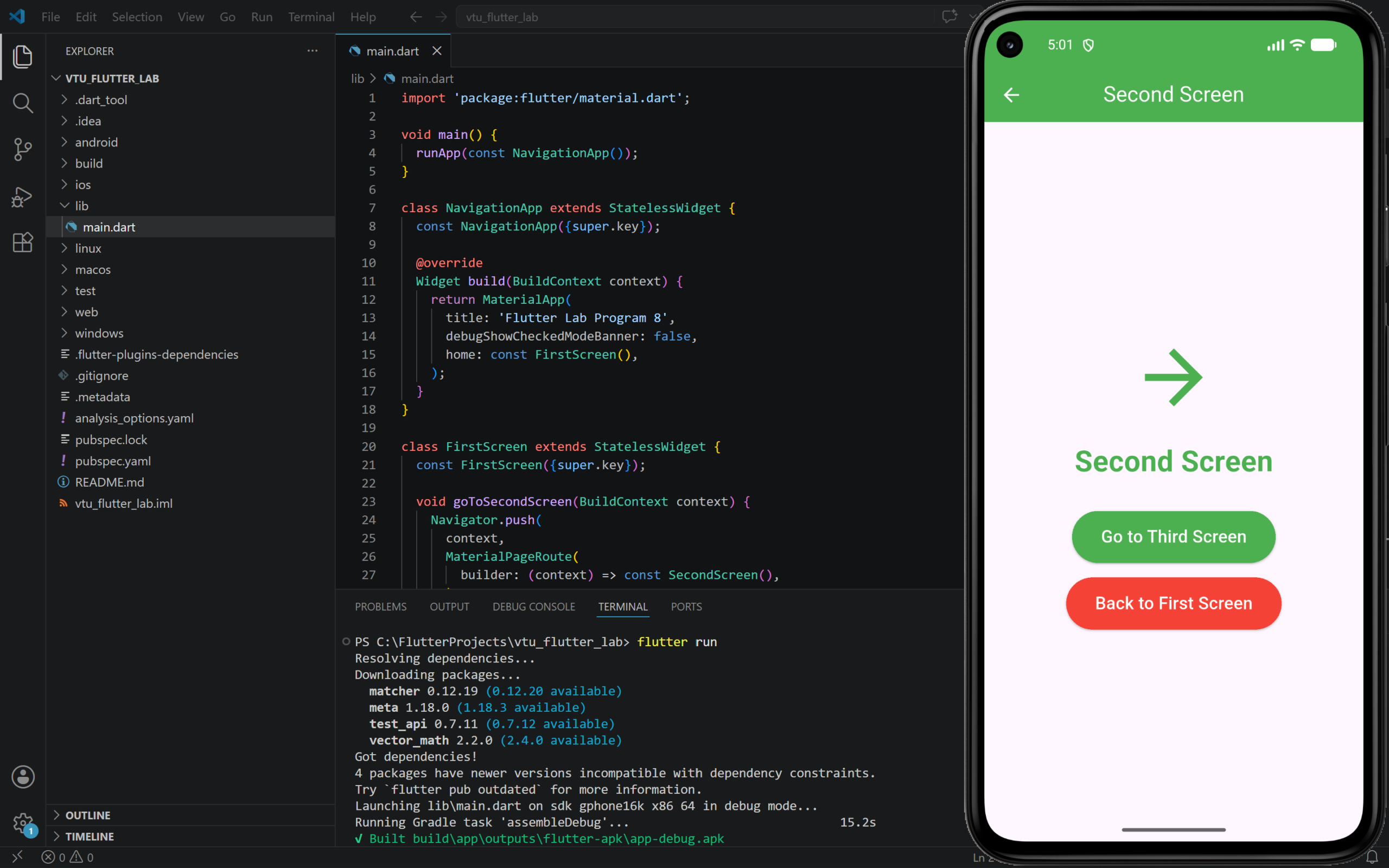

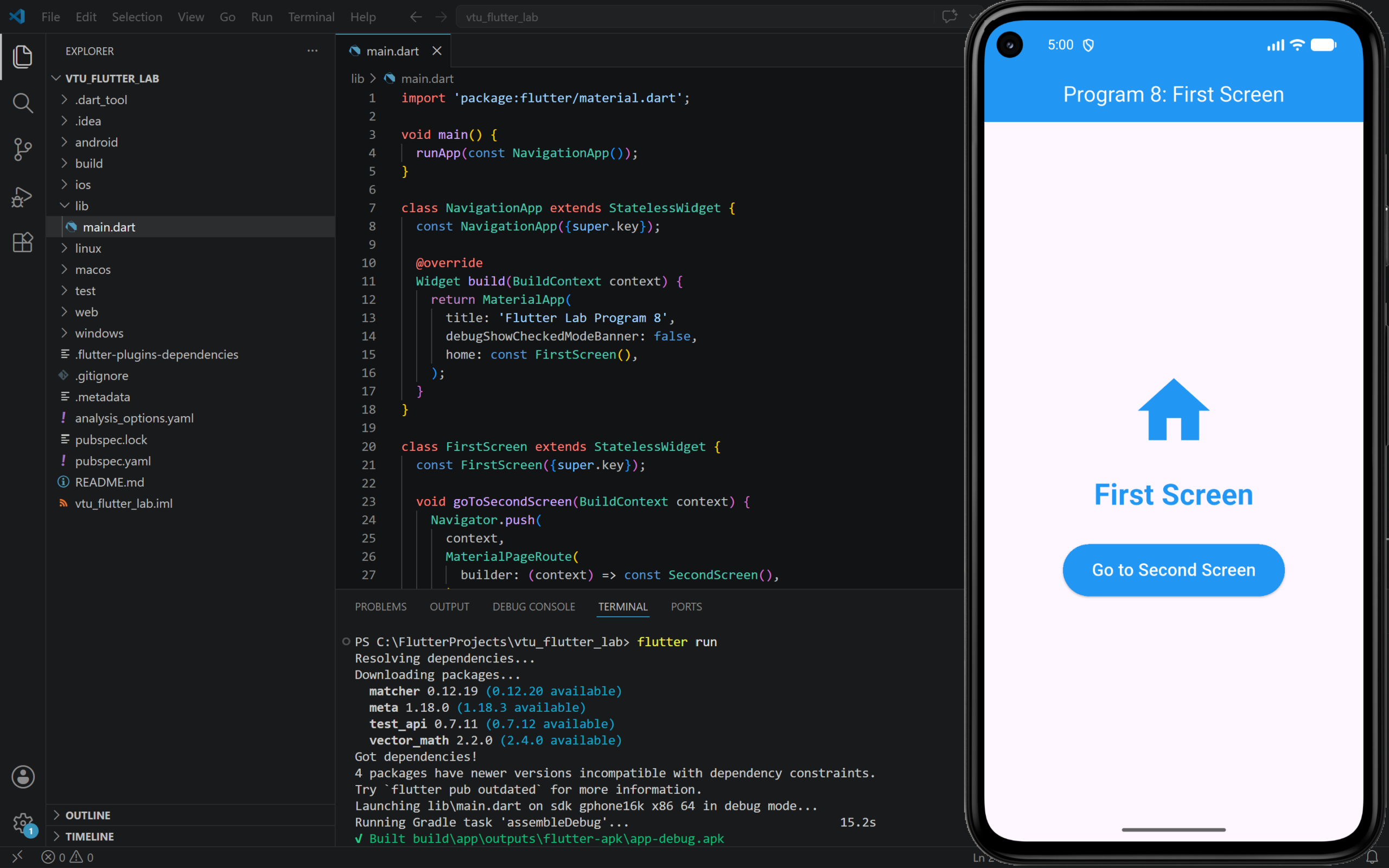

}OUTPUT:
