8. Develop a program to demonstrate the working of the decision tree algorithm. Use Breast Cancer Data set for building the decision tree and apply this knowledge to classify a new sample.
PROGRAM:
# Importing necessary libraries
import numpy as np
import matplotlib.pyplot as plt
from sklearn.datasets import load_breast_cancer
from sklearn.model_selection import train_test_split
from sklearn.tree import DecisionTreeClassifier
from sklearn.metrics import accuracy_score
from sklearn import tree
data = load_breast_cancer()
X = data.data
y = data.target
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.2, random_state=42)
clf = DecisionTreeClassifier(random_state=42)
clf.fit(X_train, y_train)
y_pred = clf.predict(X_test)
accuracy = accuracy_score(y_test, y_pred)
print(f"Model Accuracy: {accuracy * 100:.2f}%")
new_sample = np.array([X_test[0]])
prediction = clf.predict(new_sample)
prediction_class = "Benign" if prediction == 1 else "Malignant"
print(f"Predicted Class for the new sample: {prediction_class}")
plt.figure(figsize=(12,8))
tree.plot_tree(clf, filled=True, feature_names=data.feature_names, class_names=data.target_names)
plt.title("Decision Tree - Breast Cancer Dataset")

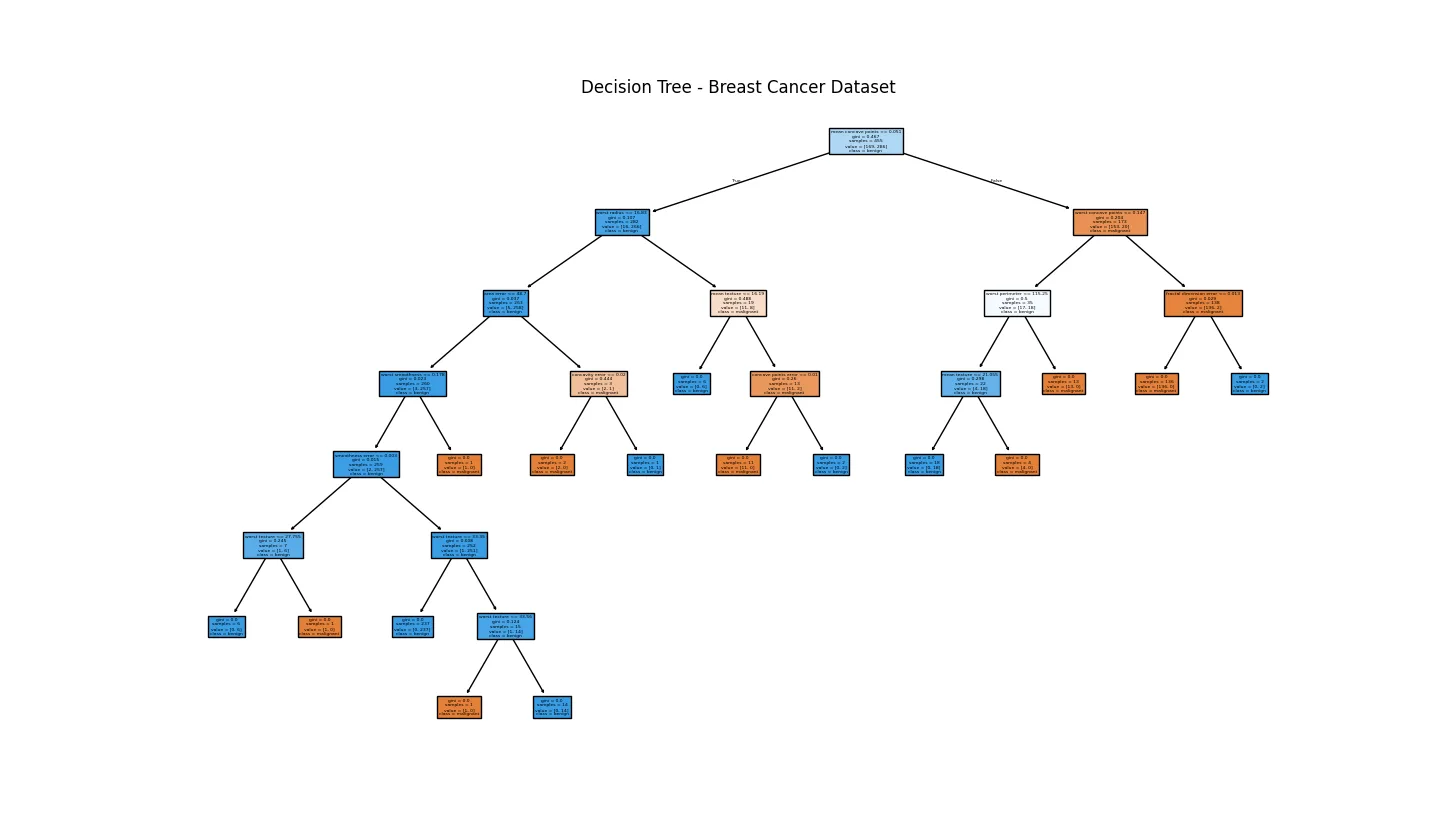

plt.show()OUTPUT:
